Ribbed Steel Pan and Pan Insulated

The Clopay and C.H.I. commercial garage doors offer solutions that provide impressive performance and solid reliability that caters to a large variety of commercial industries. Available in both insulated and non-insulated models, the pan-constructed overhead doors come in a range of gauges, which allow you to determine the specific door for your DFW commercial garage door needs. OGD® Overhead Garage Door can assist in the process of choosing the most optimal ribbed steel DFW commercial garage door and provide everything from installation to service and maintenance.


Ribbed Steel Pan and Pan InsulatedC.H.I. Ribbed Steel Pan & Pan Insulated
Garage Door Features



  • 2″ Thick Sections
  • Commercial quality steel
  • Uninsulated or Insulated
  • Ribbed Panel Profile (2 horizontal ribs with alternating “v” grooves)
  • Max Width – 24’2″ (20-gauge), 34’2″ (24-gauge), 20’2″ (25-gauge)
  • Many color options

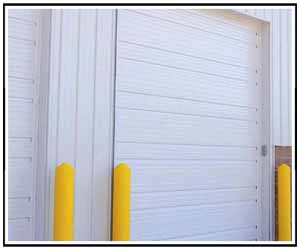

Clopay Ribbed Steel Pan and Pan InsulatedClopay Non-Insulated Ribbed Steel Door Product Features



  • 2″ thick roll formed ribbed steel
  • 20 gauge (.034″ min) – Model 520 / 24 gauge (.022″ min) – Model 524 / 25 gauge (.019 min) -Model 525 ribbed steel sections
  • Tongue and groove joint design
  • 14 gauge hinges, commercial 10-ball steel rollers, 10,000 cycle torsion springs
  • Pre-painted white or brown (all gauge models) with tan or gray option on 24 gauge


Clopay Insulated Ribbed Steel Door Product Features

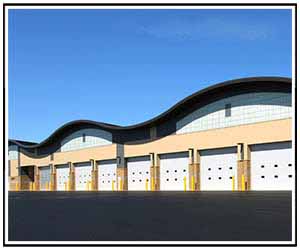

INTELLICORE Ribbed Steel Pan and Pan Insulated


  • 525 Model – 2″ thick roll formed smooth steel / 524, 520 Model – 2″ thick roll formed stucco embossed steel
  • 20 gauge (.034″ min) – Model 520 / 24 gauge (.022″ min) – Model 524 / 25 gauge (.019 min) -Model 525 ribbed steel sections
  • Tongue and groove joint design
  • 1-38″ thick polystyrene insulation with pre-painted 30 gauge steel back comer (520, 524, 525 S-Models)
  • R-Value 6.6 thermal conductivity
  • 3-stage paint process delivers maintenance free finish that resists rust perforation
  • Pre-painted white or brown
